Description
Material:
Outer layer: radiation cross-linked polyolefin
Inner layer: hot melt adhesive
Splice part: tinned copper tube
Shrink ratio: 3:1
Features:
◆ Excellent sealing performance,
anti-corrosive by withstanding the liquid and moisture
◆ Excellent abrasion and applicable
in mechanical and hydraulic environments
◆ Completely insulate and protect the electrical connections.
◆ Fully shrink temperature: ≥130℃
◆ Operation temperature range: -55℃~125℃.
Application:

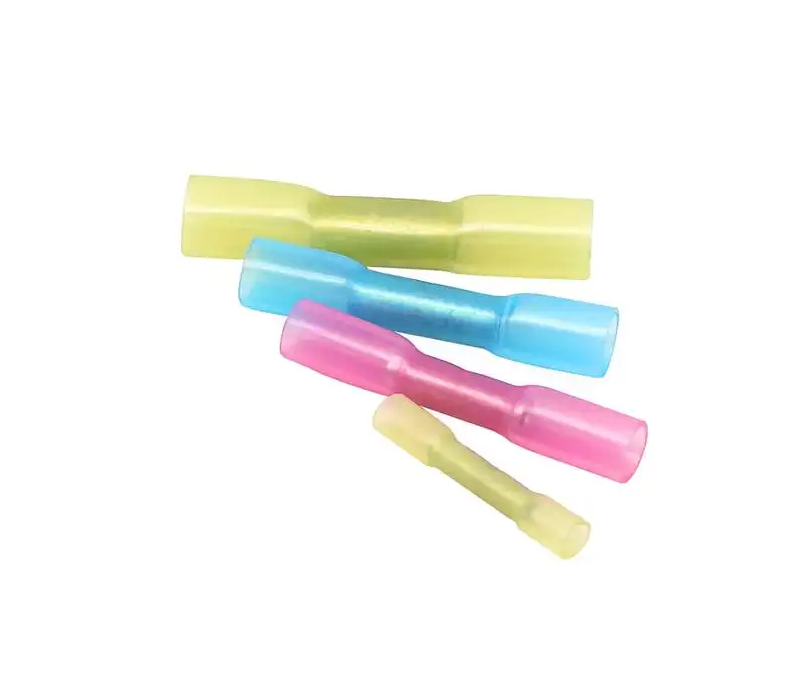

Heat shrinkable crimp splice is used for waterproof protection of wire harness connectors, electronic machines and components, also for the protection fields that require high abrasion resistance and mechanical strength.
Size:
| Size | Wire Range | Dimension of Copper Tube (mm) | Heat shrink tube(mm) | Color | Package | |||||
| AWG | mm2 | OD | B | L2 | OD | A | L1 | Pcs/bag | ||
| Φ4.7 | 22-18 | 0.5-1.0 | 3.3 | 1.7 | 15 | 5.9 | 4.7 | 36 | Red | 500 |
| Φ5.7 | 16-14 | 1.5-2.5 | 4.0 | 2.4 | 15 | 7.1 | 5.7 | 36 | Blue | 500 |
| Φ6.7 | 12-10 | 4.0-6.0 | 5.5 | 3.5 | 15 | 8.1 | 6.7 | 42 | Yellow | 500 |
