Description
Material:
Outer layer: radiation cross-linked polyolefin
Inner layer: special hot melt adhesive
Features:
◆ Recover the optical conductivity of the optical fiber
◆ Improve the mechanical strength of the splicing point
◆ Easy operation to reduce the damage risk of optical fiber
◆ Transparent appearance, easy to detect the qualification of connecting
◆ Good sealing performance to resist the temperature and humidity
Application:

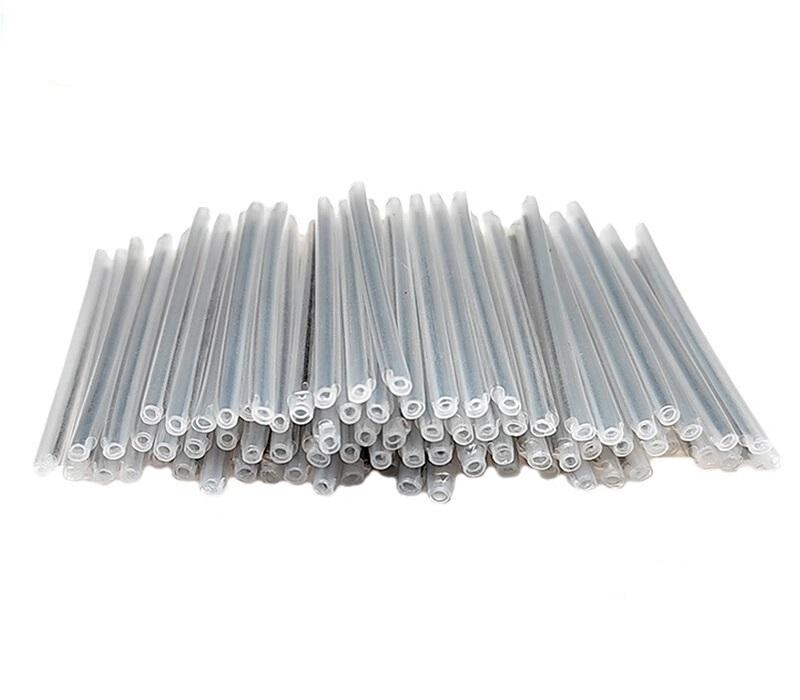

Heat shrinkable optical fiber splice is specially designed to provide strength and protection for optical fiber splices, with adhesive liner and steel rod.
Size:
| Size | Length (mm) | Fusion Tube | Steel Rod | Packing
(pcs/pack) |
||
| Inside Diameter (mm) | Length (mm) | Outside Diameter (mm) | Length (mm) | |||
| Big Type | ||||||
| TH-0FS-60B | 60.0±1.0 | 1.40±0.05 | 60.0±1.0 | 1.50±0.05 | 55.0±1.0 | 100 |
| TH-0FS-45B | 45.0±1.0 | 1.40±0.05 | 45.0±1.0 | 1.50±0.05 | 40.0±1.0 | 100 |
| TH-0FS-40B | 40.0±1.0 | 1.40±0.05 | 40.0±1.0 | 1.50±0.05 | 36.0±1.0 | 100 |
| TH-0FS-23B | 23.0±1.0 | 1.40±0.05 | 23.0±1.0 | 1.50±0.05 | 18.0±1.0 | 100 |
| Medium Type | ||||||
| TH-0FS-61M | 61.0±1.0 | 1.30±0.05 | 61.0±1.0 | 1.20±0.05 | 55.0±1.0 | 100 |
| TH-0FS-60M | 60.0±1.0 | 1.30±0.05 | 60.0±1.0 | 1.20±0.05 | 56.0±1.0 | 100 |
| TH-0FS-45M | 45.0±1.0 | 1.30±0.05 | 45.0±1.0 | 1.20±0.05 | 40.0±1.0 | 100 |
| TH-0FS-40M | 40.0±1.0 | 1.30±0.05 | 23.0±1.0 | 1.20±0.05 | 36.0±1.0 | 100 |
| TH-0FS-30M | 30.0±1.0 | 1.30±0.05 | 23.0±1.0 | 1.20±0.05 | 26.0±1.0 | 100 |
| TH-0FS-25M | 25.0±1.0 | 1.30±0.05 | 23.0±1.0 | 1.20±0.05 | 21.0±1.0 | 100 |
| Small Type | ||||||
| TH-0FS-60S | 60.0±1.0 | 0.50±0.05 | 60.0±1.0 | 1.00±0.05 | 56.0±1.0 | 100 |
| TH-0FS-40S | 40.0±1.0 | 0.50±0.05 | 40.0±1.0 | 1.00±0.05 | 36.0±1.0 | 100 |
| TH-0FS-60SA | 60.0±1.0 | 1.30±0.05 | 60.0±1.0 | 1.00±0.05 | 56.0±1.0 | 100 |
| TH-0FS-40SA | 40.0±1.0 | 1.30±0.05 | 40.0±1.0 | 1.00±0.05 | 36.0±1.0 | 100 |
| Micro Type | ||||||
| TH-0FS-40T | 40.0±1.0 | 0.50±0.05 | 40.0±1.0 | 0.50±0.05 | 40.0±1.0 | 100 |
| TH-0FS-25T | 25.0±0.5 | 0.50±0.05 | 25.0±0.5 | 0.50±0.05 | 25.0±0.5 | 100 |
| TH-0FS-18T | 18.0±0.5 | 0.50±0.05 | 18.0±0.5 | 0.50±0.05 | 18.0±0.5 | 100 |
| TH-0FS-15T | 15.0±0.5 | 0.50±0.05 | 15.0±0.5 | 0.50±0.05 | 15.0±0.5 | 100 |
| TH-0FS-10T | 10.0±0.5 | 0.50±0.05 | 10.0±0.5 | 0.50±0.05 | 10.0±0.5 | 100 |
