Description
Material: silicone rubber
Shrink ratio: 1.7:1 / 2:1
Features:
◆ RoHS, REACH, FDA compliance
◆ Excellent high and low temperature resistance
◆ Excellent flexibility, available for food and medical field
◆ Working temperature: -50℃~200℃
◆ General color: red, black, blue, grey, yellow
Application:

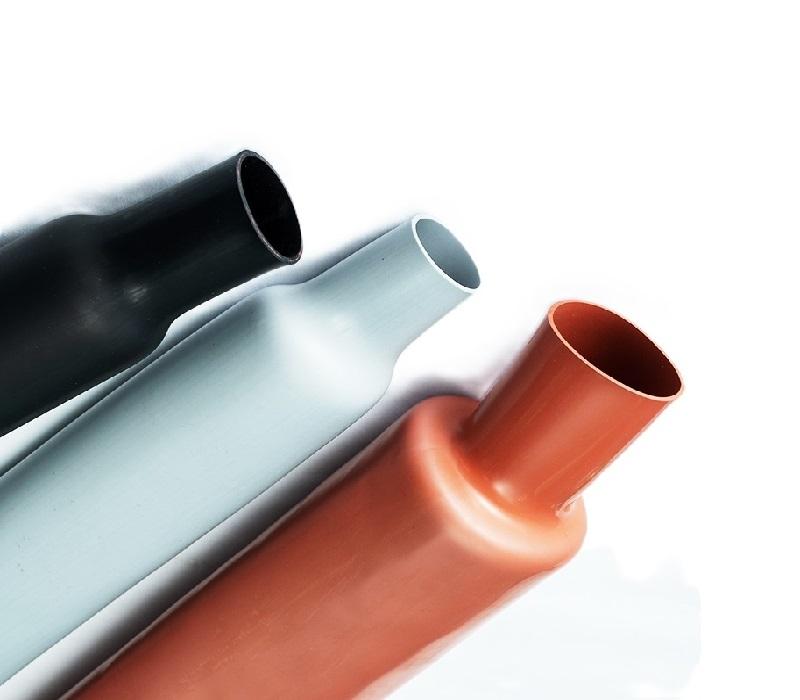

Silicone rubber tubing is designed and developed for the insulation, protection, and covering of electronic parts with special requirements, which is widely used in electrical appliances, lighting, medical equipment, etc. The biggest advantage different from other tubes is the temperature resistance up to 200℃.
Specifications:
| Items | Flame-retardant Type | Standard Type |
| Tensile strength | ≥6.0MPa | ≥6.0MPa |
| Elongation at break | ≥200% | ≥200% |
| Tearing strength | ≥15kN/m | ≥15kN/m |
| Volume resistance | ≥2.0×1012Ω.cm | ≥2.0×1014Ω.cm |
| Dielectric strength | ≥20kV/mm | ≥20kV/mm |
| Dielectric constant | ≥3.2 | ≥3.2 |
| Dielectric dissipation tangent | 0.001 | 0.001 |
| Flame retardancy | VW-1 | – |
| Working temperature range | -50℃~＋200℃ | -50℃~＋200℃ |
| Axial shrink ratio | ≤10% | ≤10% |
| Shrink temperature | ≥90℃ | ≥90℃ |
Size (shrink ratio 1.7:1):
| Size | As Supplied(mm) | After Recovery(mm) | Packing Standard | |||
| Inside Diameter | Wall
Thickness |
Inside Diameter | Wall
Thickness |
Roll or PCS | M/CTN | |
| Φ1.0 | 1.3±0.3 | 0.5±0.2 | 0.6±0.1 | 0.6±0.1 | 200M/roll | 1200M/CTN |
| Φ2.0 | 2.3±0.3 | 0.5±0.2 | 1.2±0.2 | 0.7±0.1 | ||
| Φ3.0 | 3.3±0.3 | 0.5±0.2 | 1.85±0.2 | 0.75±0.1 | ||
| Φ4.0 | 4.5±0.5 | 0.5±0.2 | 2.5±0.2 | 0.75±0.1 | ||
| Φ5.0 | 5.5±0.5 | 0.5±0.2 | 3.1±0.2 | 0.75±0.1 | ||
| Φ6.0 | 6.5±0.5 | 0.5±0.2 | 3.75±0.2 | 0.8±0.1 | 100M/roll | 600M/CTN |
| Φ7.0 | 7.5±0.5 | 0.5±0.2 | 4.35±0.2 | 0.8±0.1 | ||
| Φ8.0 | 8.5±0.5 | 0.5±0.2 | 5.0±0.2 | 0.8±0.1 | ||
| Φ9.0 | 9.5±0.5 | 0.5±0.2 | 5.6±0.2 | 0.8±0.1 | ||
| Φ10 | 10.5±0.5 | 1.0±0.2 | 6.25±0.2 | 1.6±0.2 | 50M/roll | 300M/CTN |
| Φ12 | 12.5±0.5 | 1.0±0.2 | 7.5±0.3 | 1.6±0.2 | ||
| Φ15 | 15.5±0.5 | 1.0±0.2 | 9.3±0.3 | 1.7±0.2 | ||
| Φ16 | 16.5±0.5 | 1.0±0.2 | 10.0±0.3 | 1.7±0.2 | ||
| Φ18 | 18.5±0.5 | 1.0±0.2 | 11.25±0.5 | 1.7±0.2 | ||
| Φ20 | 20.5±0.5 | 1.0±0.2 | 12.5±0.6 | 1.7±0.2 | ||
| Φ22 | 23.0±1.0 | 1.0±0.2 | 13.8±0.8 | 1.7±0.2 | 25M/roll | 150M/CTN |
| Φ25 | 26.0±1.0 | 1.0±0.2 | 15.6±0.8 | 1.7±0.2 | ||
| Φ35 | 36.0±1.0 | 1.0±0.3 | 21.8±1.0 | 1.7±0.2 | 1M/pcs | 50M/CTN |
| Φ40 | 42.0±1.0 | 1.0±0.3 | 23.5±2.0 | 1.7±0.2 | ||
| Φ50 | 53.0±3.0 | 1.0±0.3 | 29.5±3.0 | 1.7±0.2 | 40M/CTN | |
| Φ60 | 63.0±3.0 | 1.5±0.3 | 35.5±3.0 | 2.5±0.35 | ||
| Φ70 | 73.0±3.0 | 1.5±0.3 | 41.2±3.0 | 2.5±0.35 | 30M/CTN | |
| Φ80 | 85.0±5.0 | 1.5±0.4 | 47.0±5.0 | 2.5±0.35 | ||
| Φ90 | 95.0±5.0 | 1.5±0.4 | 53.0±5.0 | 2.5±0.35 | 20M/CTN | |
| Φ110 | 110.0±5.0 | 1.5±0.4 | 64.7±5.0 | 2.5±0.5 | ||
Size (shrink ratio 2:1):
| Size | As Supplied(mm) | After Recovery(mm) | Packing Standard | |||
| Inside Diameter | Wall
Thickness |
Inside Diameter | Wall
Thickness |
Roll or PCS | M/CTN | |
| Φ1.0 | 1.4±0.4 | 0.5±0.2 | 0.5±0.1 | 0.65±0.1 | 200M/roll | 1200M/CTN |
| Φ2.0 | 2.4±0.4 | 0.5±0.2 | 1.0±0.2 | 0.7±0.1 | ||
| Φ3.0 | 3.5±0.5 | 0.5±0.2 | 1.5±0.2 | 0.8±0.1 | ||
| Φ4.0 | 4.5±0.5 | 0.5±0.2 | 2.1±0.2 | 0.8±0.1 | ||
| Φ5.0 | 5.5±0.5 | 0.5±0.2 | 2.6±0.2 | 0.85±0.1 | ||
| Φ6.0 | 6.5±0.5 | 0.5±0.2 | 3.2±0.3 | 0.85±0.1 | 100M/roll | 600M/CTN |
| Φ7.0 | 7.5±0.5 | 0.5±0.2 | 3.7±0.3 | 0.85±0.1 | ||
| Φ8.0 | 8.5±0.5 | 0.5±0.2 | 4.3±0.3 | 0.9±0.1 | ||
| Φ9.0 | 9.5±0.5 | 0.5±0.2 | 4.8±0.3 | 0.9±0.1 | ||
| Φ10 | 10.5±0.5 | 1.0±0.2 | 5.3±0.3 | 1.8±0.2 | 50M/roll | 300M/CTN |
| Φ12 | 12.5±0.5 | 1.0±0.2 | 6.4±0.3 | 1.85±0.2 | ||
| Φ15 | 15.5±0.5 | 1.0±0.2 | 8.0±0.4 | 1.9±0.2 | ||
| Φ16 | 16.5±0.5 | 1.0±0.2 | 8.5±0.4 | 1.95±0.2 | ||
| Φ18 | 19±1.0 | 1.0±0.2 | 9.5±0.4 | 1.95±0.2 | ||
| Φ20 | 21±1.0 | 1.0±0.2 | 10.5±0.5 | 1.95±0.2 | ||
| Φ25 | 26±1.5 | 1.0±0.3 | 13.0±0.5 | 2.0±0.2 | 1M/pcs | 100M/CTN |
| Φ35 | 36±1.5 | 1.0±0.3 | 18.0±1.0 | 2.0±0.2 | 50M/CTN | |
| Φ40 | 42±2.0 | 1.0±0.3 | 20.5±1.0 | 2.0±0.2 | ||
| Φ50 | 53±3.0 | 1.0±0.3 | 25.5±1.0 | 2.0±0.2 | 40M/CTN | |
| Φ60 | 63±3.0 | 1.5±0.3 | 32.0±2 | 3.0±0.5 | ||
| Φ70 | 73±3.0 | 1.5±0.3 | 38.0±3 | 3.0±0.5 | 30M/CTN | |
| Φ80 | 85±5.0 | 1.5±0.4 | 45.0±4 | 3.0±0.5 | ||
| Φ90 | 95±5.0 | 1.5±0.4 | 50.0±4 | 3.0±0.5 | 20M/CTN | |
| Φ110 | 110±5.0 | 1.5±0.4 | 60.0±5 | 3.0±0.5 | ||
Other sizes and colors are available upon special order.
