Description
Material:
Outer layer: radiation cross-linked polyolefin
Inner layer: hot melt adhesive
Solder part: environment friendly solder ring
Shrink ratio: 2:1
Features:
◆ Waterproof with inside adhesive
◆ Marking the cable with color adhesive ring
◆ Easy assembly with hot melted solder ring
◆ Fully shrink temperature: ≥150℃
◆ Operation temperature range: -55℃~125℃
Application:
Heat shrinkable solder sleeve can offer reliable, cost-effective ways to connect and terminate wire and cable. In one easy step, it can electrically connect, insulate and seal the connectors and terminations.
Size:
| Part NO. | Product Dimensions (mm) | Wire Dimensions (mm) | Wire Range | Color | ||||
| d(min.) | L(min.) | B(min.) | B&C(max.) | C(min.) | AWG | mm2 | ||

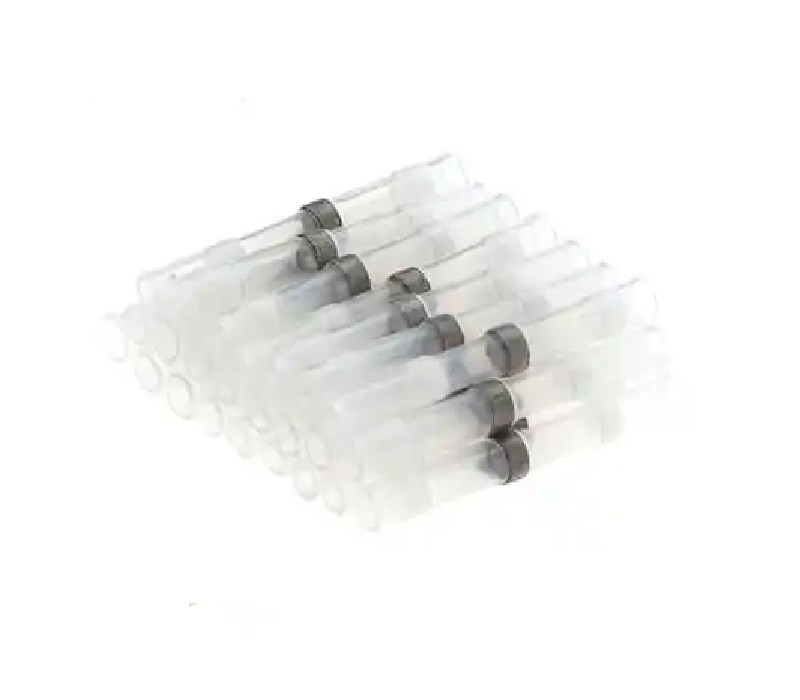

| TH-0017 | 1.7 | 26 | 1.0 | 1.7 | 0.76 | 26-24 | 0.25-0.34 | White |

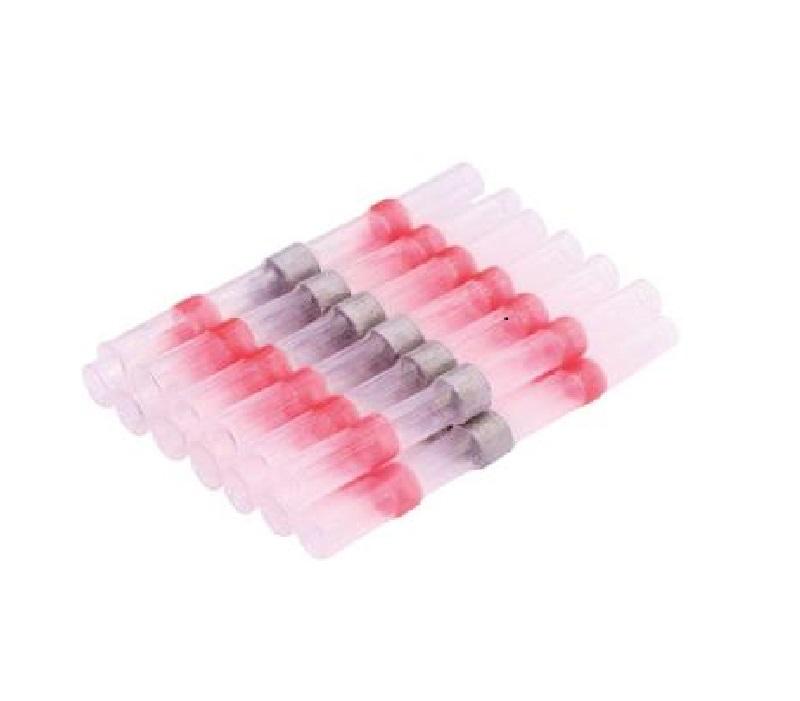

| TH-0027 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18 | 0.5-1.0 | Red |

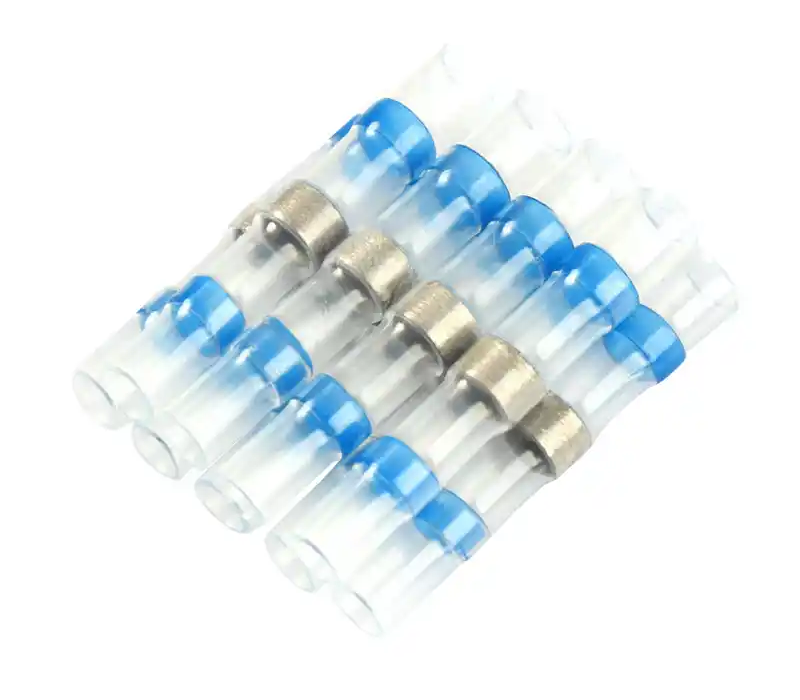

| TH-0047 | 4.7 | 40 | 2.3 | 4.7 | 2.0 | 16-14 | 1.5-2.5 | Blue |

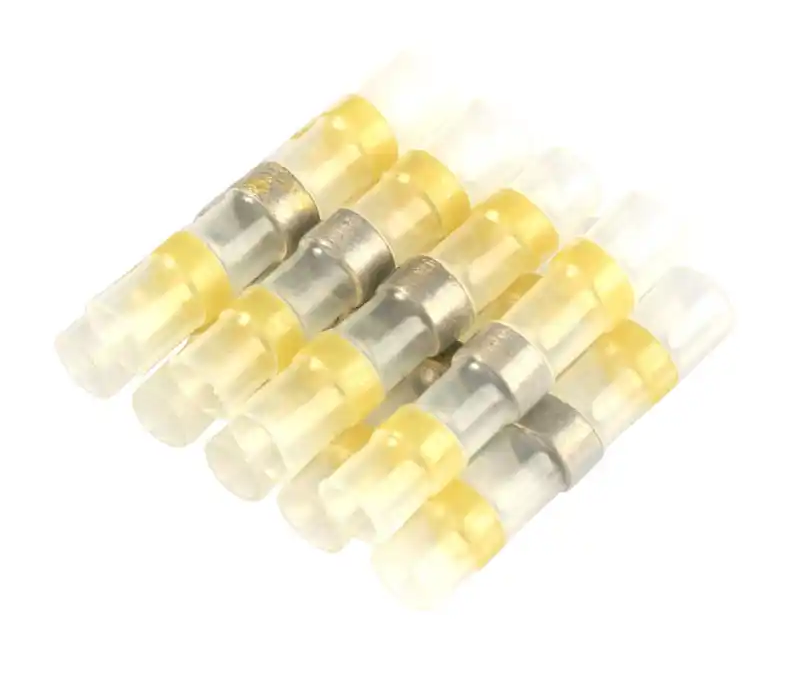

| TH-0060 | 6.0 | 40 | 3.7 | 6.0 | 3.4 | 12-10 | 4.0-6.0 | Yellow |
