Description

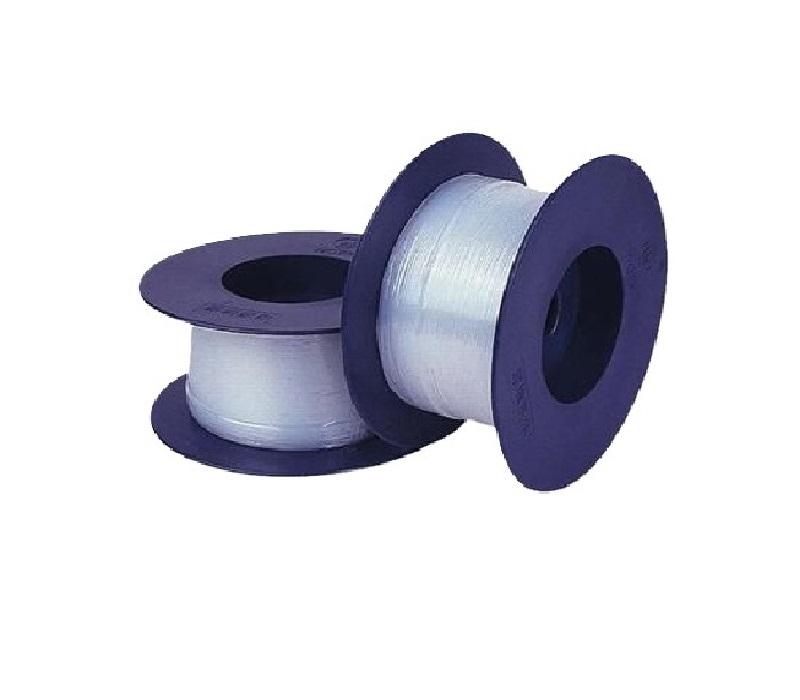

Material: PTFE
Shrink ratio: non-shrinkable
Features:
◆ Voltage level: 150V / 300V / 600V
◆ RoHS, REACH, Sony standard compliance
◆ High temperature and flame resistance
◆ Excellent chemical fluid resistance
◆ Operation temperature range: -60~260℃
Application:
Made of PTFE material, with high temperature resistance up to 260℃, corrosion resistance, high dielectric strength, it is widely used in industries like electronics, electric heating, aerospace, military, and telecommunication, for example mini type transformers, special sensors, artificial blood vessels etc.
Specifications:
| Items | Test Methods | Specification |
| Specific gravity | ASTM D792 | 2.16g/cm3 |
| Tensile strength | ASTM D638 | ≥24.5MPa |
| Elongation at break | ASTM D638 | ≥350% |
| Bending coefficient | ASTM D792 | ≥490MPa |
| Impact strength | ASTM D256, +23℃-54℃j/m | No cracking |
| Hardness | ASTM D2240 | ≥55 Shore D |
| Friction coefficient | – | ≤0.1 |
| Melting point | – | 327℃ |
| Operating temperature | – | ≤260℃ |
| Flammability | UL224 | VW-1 |
| Dielectric constant 103-106HZA | ASTM D150 | ≥2.1 |
| Dielectric dissipation factor 106HZ | ASTM D150 | 0.0002 |
| Arc coefficient | ASTM D495 | ＞300S |
| Volume resistance | UL224 | ≥1.0×1015Ω.cm |
| Dielectric strength | ASTM D2671 | AC 2500V, 60s, no breakdown |
| Weather resistance | “Weather-o-meter” (2000h) | No change |
| Solvent resistance | ASTM D543 | Excellent |
| Chemical resistance | ASTM D543 | Excellent |
Size:
| Size (AWG) | Inside Diameter
(mm) |
Wall-thickness(mm) | Packing Length
(meter/roll) |
|||
| S-TYPE | T-TYPE | L-TYPE | ||||
| 30 | 0.30±0.05 | 0.23±0.05 | 0.23±0.05 | 0.15±0.04 | 305 | |
| 28 | 0.38±0.05 | 305 | ||||
| 26 | 0.46±0.05 | 305 | ||||
| 24 | 0.56±0.05 | 0.30±0.06 | 0.25±0.06 | 305 | ||
| 23 | 0.66±0.05 | 305 | ||||
| 22 | 0.71±0.05 | 305 | ||||
| 21 | 0.81±0.05 | 305 | ||||
| 20 | 0.86±0.05 | 0.40±0.07 | 0.30±0.06 | 305 | ||
| 19 | 0.96±0.05 | 305 | ||||
| 18 | 1.07±0.05 | 305 | ||||
| 17 | 1.19±0.05 | 305 | ||||
| 16 | 1.34±0.05 | 153 | ||||
| 15 | 1.50±0.05 | 153 | ||||
| 14 | 1.68±0.08 | 0.20±0.05 | 153 | |||
| 13 | 1.93±0.08 | 153 | ||||
| 12 | 2.16±0.08 | 153 | ||||
| 11 | 2.41±0.08 | 100 | ||||
| 10 | 2.69±0.08 | 100 | ||||
| 9 | 3.00±0.08 | 0.50±0.07 | 0.38±0.07 | 100 | ||
| 8 | 3.38±0.08 | 50 | ||||
| 7 | 3.76±0.08 | 50 | ||||
| 6 | 4.22±0.08 | 0.25±0.06 | 50 | |||
| 5 | 4.72±0.10 | 50 | ||||
| 4 | 5.28±0.10 | 100 | ||||
| 3 | 5.94±0.10 | 100 | ||||
| 2 | 6.68±0.10 | 100 | ||||
| 1 | 7.46±0.10 | 100 | ||||
| 0 | 8.38±0.10 | 100 | ||||
Other sizes and colors are available upon special order.
