Description
Material: radiation cross-linked fluoropolymer
Shrink ratio: 2:1
Features:
◆ High temperature resistance, transparent, flame retardant
◆ Soft (150℃) and semi-rigid (175℃)
◆ Operation temperature range: -55℃~150℃/-55℃~175℃
◆ Minimum shrink temperature: 150℃/175℃

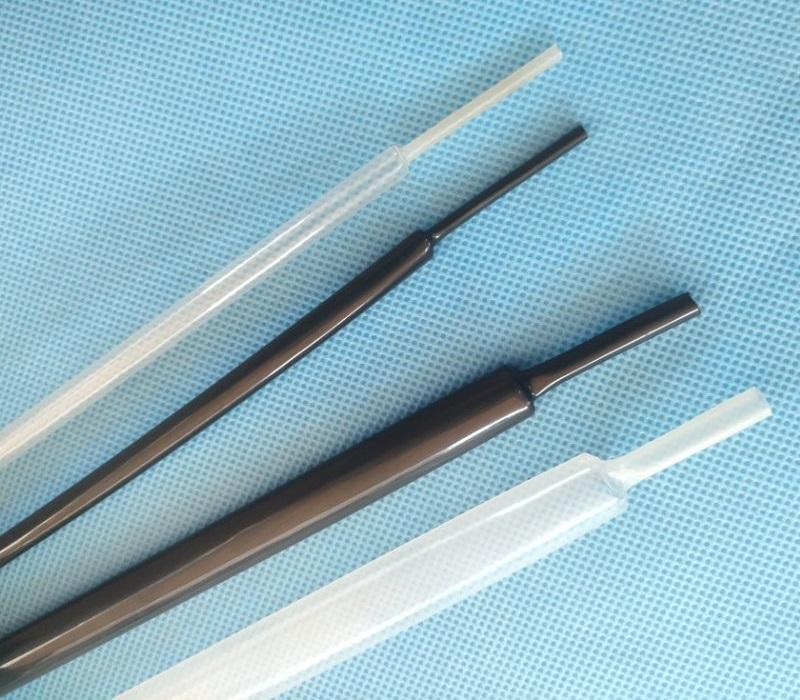

◆ General color: transparent/black
Application:
PVDF tubing has good resistance to heat, abrasion, mechanical damage and chemical corrosion, applicable for environments with corrosive gas, thermal cycle or mechanical stress. With good flame-retardant property makes it to be used in the wiring of instruments such as automotive, aviation, ships, and electronic equipment. Its good transparency is also suitable for the encapsulation of electronic components and the identification of encapsulated components.
Specifications:
| Items | Test Methods | Specification (150℃) | Specification (175℃) |
| Specific gravity | ASTM D792 | ≤1.8g/cm3 | ≤1.8g/cm3 |
| Tensile strength | ASTM D2671 | ≥24.5MPa | ≥34.5MPa |
| Elongation at break | ASTM D2671 | ≥150% | ≥150% |
| Elongation at break after aging | 225℃/168h | ≥100% | ≥50% |
| Heat shock | 275℃/4h | No dripping, no flowing, no cracking | No dripping, no flowing, no cracking |
| Cold shock | -55℃/4h | No cracking, no breaking | No cracking, no breaking |
| Dielectric strength | ASTM D2671 | ≥15.7kV/mm | ≥31.5kV/mm |
| Volume resistance | ASTM D257 | ≥1.0×1013Ω.cm | ≥1.0×1013Ω.cm |
| Flammability | UL224 | VW-1 | VW-1 |
Size:
|
Size |
Inside Diameter | Wall Thickness after Recovery | ||||
| Min. ID as Supplied | Max. ID after Recovery | |||||
| mm | inch | mm | inch | mm | inch | |
| 3/64 | 1.2 | 0.046 | 0.6 | 0.023 | 0.25±0.05 | 0.010±0.002 |
| 1/16 | 1.6 | 0.063 | 0.8 | 0.031 | 0.25±0.05 | 0.010±0.002 |
| 3/32 | 2.4 | 0.093 | 1.2 | 0.046 | 0.25±0.05 | 0.010±0.002 |
| 1/8 | 3.2 | 0.125 | 1.6 | 0.062 | 0.25±0.05 | 0.010±0.002 |
| 3/16 | 4.8 | 0.187 | 2.4 | 0.093 | 0.25±0.05 | 0.010±0.002 |
| 1/4 | 6.4 | 0.250 | 3.2 | 0.125 | 0.33±0.05 | 0.013±0.002 |
| 3/8 | 9.5 | 0.375 | 4.8 | 0.187 | 0.33±0.05 | 0.013±0.002 |
| 1/2 | 12.7 | 0.500 | 6.4 | 0.250 | 0.33±0.05 | 0.013±0.002 |
| 3/4 | 19.1 | 0.750 | 9.5 | 0.375 | 0.43±0.08 | 0.017±0.003 |
| 1 | 25.4 | 1.000 | 12.7 | 0.500 | 0.48±0.08 | 0.019±0.003 |
| 1-1/2 | 38.1 | 1.500 | 19.1 | 0.750 | 0.48±0.08 | 0.019±0.003 |
Other sizes and colors are available upon special order.
