Description

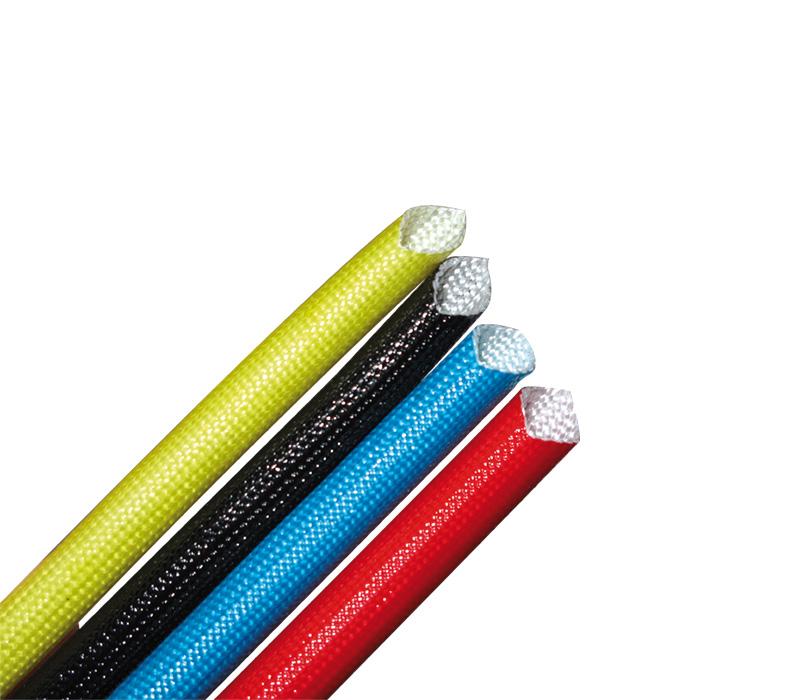

Material: fiberglass yarn coated with silicone resin
Shrink ratio: non-shrinkable
Features:
◆ Excellent dielectric strength
◆ Good flexibility and elasticity
◆ High flame retardant performance
◆ High temperature resistance
Application:
Widely used in insulation protection of internal wires for H&N class motors, home appliances, electric heating equipment, special lamps, television and other electronic instruments.
Specifications:
| Items | Specification |
| Temperature range in continuous use | -40℃～+200℃ |
| Temperature resistance | 200℃±2℃, 168h, ≥1/2 original voltage value |
| Aging in circulating-air oven | 260℃, 6h, no cracking |
| Cold bending | No cracking, no breaking |
| Horizontal burning | ≤30s |
| Vertical burning (VW-1) | ≤30s |
| Hydrolysis stability | No sticky, no deformation, no softening |
Technical data:
| Model | Test Condition | Flame Resistance | Temperature Resistance | Breakdown Voltage Level | Average Voltage | Individual value |
| TH-SGS-15 | UL1441 | UL VW-1 | -10℃~+200℃ | D | 1500V | 1000V |
| TH-SGS-25 | UL1441 | UL VW-1 | -10℃~+200℃ | C | 2500V | 1800V |
| TH-SGS-40 | UL1441 | UL VW-1 | -10℃~+200℃ | B | 4000V | 2500V |
| TH-SGS-70 | UL1441 | UL VW-1 | -10℃~+200℃ | A | 7000V | 5000V |
Size
| Size | Inside Diameter (D) (mm)
|
Wall-thickness (T) (mm) | Packing Length (meter/roll) | |||
| 1200V | 1500V
/ 2500V |
4000V | 7000V | |||
| Φ0.5 | 0.50+0.20/-0 | 0.28±0.05 | 0.35±0.05 | 0.40±0.05 | 0.45±0.05 | 100 |
| Φ0.8 | 0.80+0.20/-0 | 0.28±0.05 | 0.35±0.05 | 0.40±0.05 | 0.45±0.05 | 100 |
| Φ1.0 | 1.00+0.20/-0 | 0.28±0.05 | 0.35±0.05 | 0.40±0.05 | 0.45±0.05 | 100 |
| Φ1.5 | 1.50+0.20/-0 | 0.28±0.05 | 0.35±0.05 | 0.40±0.05 | 0.45±0.05 | 100 |
| Φ2.0 | 2.00+0.20/-0 | 0.28±0.05 | 0.35±0.05 | 0.40±0.05 | 0.45±0.05 | 100 |
| Φ2.5 | 2.50+0.25/-0 | 0.30±0.05 | 0.35±0.05 | 0.40±0.05 | 0.45±0.05 | 100 |
| Φ3.0 | 3.00+0.25/-0 | 0.30±0.05 | 0.35±0.05 | 0.40±0.05 | 0.45±0.05 | 100 |
| Φ3.5 | 3.50+0.35/-0 | 0.38±0.05 | 0.42±0.05 | 0.50±0.05 | 0.55±0.05 | 100 |
| Φ4.0 | 4.00+0.35/-0 | 0.38±0.05 | 0.42±0.05 | 0.50±0.05 | 0.55±0.05 | 100 |
| Φ4.5 | 4.50+0.35/-0 | 0.38±0.05 | 0.42±0.05 | 0.50±0.05 | 0.55±0.05 | 100 |
| Φ5.0 | 5.00+0.35/-0 | 0.38±0.05 | 0.42±0.05 | 0.50±0.05 | 0.55±0.05 | 100 |
| Φ6.0 | 6.00+0.50/-0 | 0.43±0.05 | 0.45±0.05 | 0.55±0.05 | 0.60±0.05 | 100 |
| Φ6.5 | 6.50+0.50/-0 | 0.43±0.05 | 0.45±0.05 | 0.55±0.05 | 0.60±0.05 | 100 |
| Φ7.0 | 7.00+0.50/-0 | 0.43±0.05 | 0.45±0.05 | 0.55±0.05 | 0.60±0.05 | 100 |
| Φ7.5 | 7.50+0.50/-0 | 0.43±0.05 | 0.45±0.05 | 0.55±0.05 | 0.60±0.05 | 100 |
| Φ8.0 | 8.00+0.50/-0 | 0.43±0.05 | 0.45±0.05 | 0.55±0.05 | 0.60±0.05 | 50 |
| Φ8.5 | 8.50+0.50/-0 | 0.43±0.05 | 0.45±0.05 | 0.55±0.05 | 0.60±0.05 | 50 |
| Φ9.0 | 9.00+0.50/-0 | 0.43±0.05 | 0.45±0.05 | 0.55±0.05 | 0.60±0.05 | 50 |
| Φ10 | 10.0+0.70/-0 | 0.47±0.05 | 0.53±0.05 | 0.60±0.05 | 0.65±0.05 | 50 |
| Φ11 | 10.0+0.70/-0 | 0.47±0.05 | 0.53±0.05 | 0.60±0.05 | 0.65±0.05 | 50 |
| Φ12 | 12.0+0.70/-0 | 0.47±0.05 | 0.53±0.05 | 0.60±0.05 | 0.65±0.05 | 30 |
| Φ13 | 13.0+0.80/-0 | 0.53±0.05 | 0.56±0.05 | 0.65±0.05 | 0.70±0.05 | 30 |
| Φ14 | 14.0+0.80/-0 | 0.53±0.05 | 0.56±0.05 | 0.65±0.05 | 0.70±0.05 | 30 |
| Φ15 | 15.0+0.80/-0 | 0.53±0.05 | 0.56±0.05 | 0.65±0.05 | 0.70±0.05 | 30 |
| Φ16.0 | 16.0+0.80/-0 | 0.53±0.05 | 0.56±0.05 | 0.65±0.05 | 0.70±0.05 | 30 |
| Φ17.0 | 17.0+0.80/-0 | 0.53±0.05 | 0.56±0.05 | 0.65±0.05 | 0.70±0.05 | 30 |
| Φ18.0 | 18.0+0.80/-0 | 0.53±0.05 | 0.56±0.05 | 0.65±0.05 | 0.70±0.05 | 25 |
| Φ19.0 | 19.0+0.80/-0 | 0.53±0.05 | 0.56±0.05 | 0.65±0.05 | 0.70±0.05 | 25 |
| Φ20.0 | 20.0+0.80/-0 | 0.53±0.05 | 0.56±0.05 | 0.65±0.05 | 0.70±0.05 | 25 |
| Φ22.0 | 22.0+0.90/-0 | 0.68±0.05 | 0.70±0.05 | 1.00±0.05 | 1.05±0.05 | 25 |
| Φ25.0 | 25.0+0.90/-0 | 0.68±0.05 | 0.70±0.05 | 1.00±0.05 | 1.05±0.05 | 25 |
| Φ30.0 | 30.0+0.90/-0 | 0.68±0.05 | 0.70±0.05 | 1.00±0.05 | 1.05±0.05 | 25 |
| Φ35.0 | 35.0+0.90/-0 | 0.68±0.05 | 0.70±0.05 | 1.00±0.05 | 1.05±0.05 | 25 |
Other sizes and colors are available upon special order.
