Description

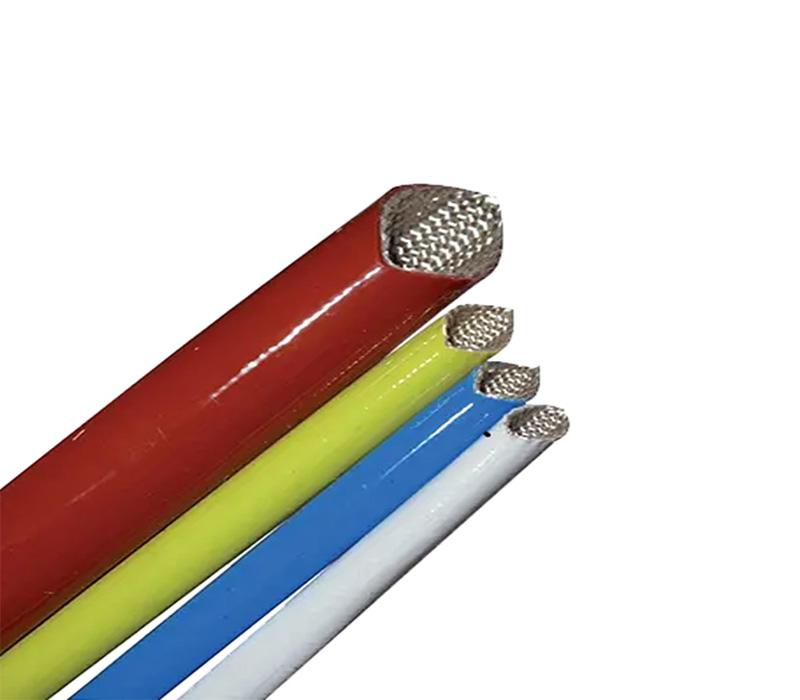

Material: fiberglass yarn coated with silicone rubber
Shrink ratio: non-shrinkable
Features:
◆ Excellent dielectric strength
◆ Good flexibility and elasticity
◆ High flame retardant performance
◆ High temperature resistance
Application:
Widely used in insulation protection of internal wires for H&N class motors, home appliances, electric heating equipment, special lamps, television and other electronic instruments.
Specifications:
| Items | Specification |
| Temperature range in continuous use | -40℃～+200℃ |
| Temperature resistance | 200℃±2℃, 168h, ≥1/2 original voltage value |
| Aging in circulating-air oven | 260℃, 6h, no cracking |
| Cold bending | No cracking, no breaking |
| Horizontal burning | ≤30s |
| Vertical burning (VW-1) | ≤30s |
| Hydrolysis stability | No sticky, no deformation, no softening |
| Volume resistance | ≥1.0×1011Ω.cm |
Technical data:
| Model | Test Condition | Flame Resistance | Temperature Resistance | Breakdown Voltage Level | Average Voltage | Individual value |
| TH-SRS1-40 | UL1441 | UL VW-1 | -10~200℃ | C | 4000V | 2500V |
| TH-SRS1-70 | UL1441 | UL VW-1 | -10~200℃ | B | 7000V | 5000V |
| TH-SRS2-70 | UL1441 | UL VW-1 | -10~200℃ | A | 7000V | 6000V |
Size
| Size | TH-SRS1 | TH-SRS2 | ||||
| Inside Diameter (D) (mm) | Wall–thickness (T) (mm) | Inside Diameter (D) (mm) | Wall–thickness (T) (mm) | Packing Length (meter /roll) | ||
| 4000V | 7000V | 7000V | ||||
| Φ0.5 | 0.5+0.2/-0 | 0.40±0.05 | 0.45±0.05 | 0.5+0.20/-0 | 0.60±0.05 | 200 |
| Φ0.8 | 0.8+0.2/-0 | 0.40±0.05 | 0.45±0.05 | 0.8+0.20/-0 | 0.60±0.05 | 200 |
| Φ1.0 | 1.0+0.2/-0 | 0.40±0.05 | 0.45±0.05 | 1.0+0.20/-0 | 0.60±0.05 | 200 |
| Φ1.5 | 1.5+0.2/-0 | 0.40±0.05 | 0.45±0.05 | 1.5+0.20/-0 | 0.60±0.05 | 200 |
| Φ2.0 | 2.0+0.2/-0 | 0.40±0.05 | 0.45±0.05 | 2.0+0.20/-0 | 0.60±0.05 | 200 |
| Φ2.5 | 2.5+0.25/-0 | 0.40±0.05 | 0.50±0.05 | 2.5+0.25/-0 | 0.60±0.05 | 100 |
| Φ3.0 | 3.0+0.25/-0 | 0.40±0.05 | 0.50±0.05 | 3.0+0.30/-0 | 0.70±0.05 | 100 |
| Φ3.5 | 3.5+0.35/-0 | 0.50±0.05 | 0.55±0.05 | 3.5+0.30/-0 | 0.70±0.05 | 100 |
| Φ4.0 | 4.0+0.35/-0 | 0.50±0.05 | 0.55±0.05 | 4.0+0.30/-0 | 0.70±0.05 | 100 |
| Φ4.5 | 4.5+0.35/-0 | 0.50±0.05 | 0.55±0.05 | 4.5+0.30/-0 | 0.70±0.05 | 100 |
| Φ5.0 | 5.0+0.35/-0 | 0.50±0.05 | 0.55±0.05 | 5.0+0.30/-0 | 0.70±0.05 | 100 |
| Φ5.5 | 5.5+0.5/-0 | 0.55±0.05 | 0.60±0.05 | – | – | 100 |
| Φ6.0 | 6.0+0.5/-0 | 0.55±0.05 | 0.60±0.05 | 6.0+0.35/-0 | 0.75±0.05 | 100 |
| Φ7.0 | 7.0+0.5/-0 | 0.55±0.05 | 0.60±0.05 | 7.0+0.35/-0 | 0.75±0.05 | 100 |
| Φ8.0 | 8.0+0.5/-0 | 0.55±0.05 | 0.60±0.05 | 8.0+0.40/-0 | 0.80±0.05 | 50 |
| Φ9.0 | 9.0+0.5/-0 | 0.55±0.05 | 0.60±0.05 | 9.0+0.40/-0 | 0.80±0.05 | 50 |
| Φ10.0 | 10.0+0.7/-0 | 0.60±0.05 | 0.65±0.05 | 10.0+0.50/-0 | 0.90±0.05 | 50 |
| Φ11.0 | 11.0+0.7/-0 | 0.60±0.05 | 0.65±0.05 | 11.0+0.50/-0 | 0.90±0.05 | 50 |
| Φ12.0 | 12.0+0.7/-0 | 0.60±0.05 | 0.65±0.05 | 12.0+0.50/-0 | 0.90±0.05 | 30 |
| Φ13.0 | 13.0+0.8/-0 | 0.65±0.05 | 0.70±0.05 | 13.0+0.65/-0 | 1.30±0.05 | 30 |
| Φ14.0 | 14.0+0.8/-0 | 0.65±0.05 | 0.70±0.05 | 14.0+0.65/-0 | 1.30±0.05 | 30 |
| Φ15.0 | 15.0+0.8/-0 | 0.65±0.05 | 0.70±0.05 | 15.0+0.65/-0 | 1.30±0.05 | 30 |
| Φ16.0 | 16.0+0.8/-0 | 0.65±0.05 | 0.70±0.05 | 16.0+0.65/-0 | 1.30±0.05 | 30 |
| Φ17.0 | 17.0+0.8/-0 | 0.65±0.05 | 0.70±0.05 | 17.0+0.65/-0 | 1.30±0.05 | 30 |
| Φ18.0 | 18.0+0.8/-0 | 0.65±0.05 | 0.70±0.05 | 18.0+0.65/-0 | 1.30±0.05 | 25 |
| Φ20.0 | 20.0+0.8/-0 | 0.65±0.05 | 0.70±0.05 | 20.0+0.65/-0 | 1.30±0.05 | 25 |
| Φ22.0 | 22.0+0.9/-0 | 1.00±0.05 | 1.00±0.05 | 22.0+0.65/-0 | 1.30±0.05 | 25 |
| Φ25.0 | 25.0+1.0/-0 | 1.00±0.05 | 1.00±0.05 | 25.0+0.65/-0 | 1.30±0.05 | 25 |
| Φ30.0 | 30.0+1.0/-0 | 1.00±0.05 | 1.00±0.05 | – | – | 25 |
| Φ35.0 | 35.0+1.0/-0 | 1.00±0.05 | 1.00±0.05 | – | – | 25 |
Other sizes and colors are available upon special order.
